Unearthing the Evolution of Metal Detector Search Coils: From Round to Elliptical
Coil Shape: The Evolution of Metal Detector Search Coils
Metal detecting has come a long way since its early days when hobbyists used rudimentary devices to search for hidden treasures. Today, metal detectors are sophisticated machines that use advanced technology to locate metal objects buried deep underground. One key component of modern metal detectors is the search coil, which plays a critical role in determining the machine’s sensitivity and accuracy.
Search coils come in different shapes and sizes, each designed for specific applications. Over time, manufacturers have experimented with various coil shapes to improve performance and cater to different user needs. In this article, we’ll explore the evolution of coil shape in metal detecting and what it means for detectorists.

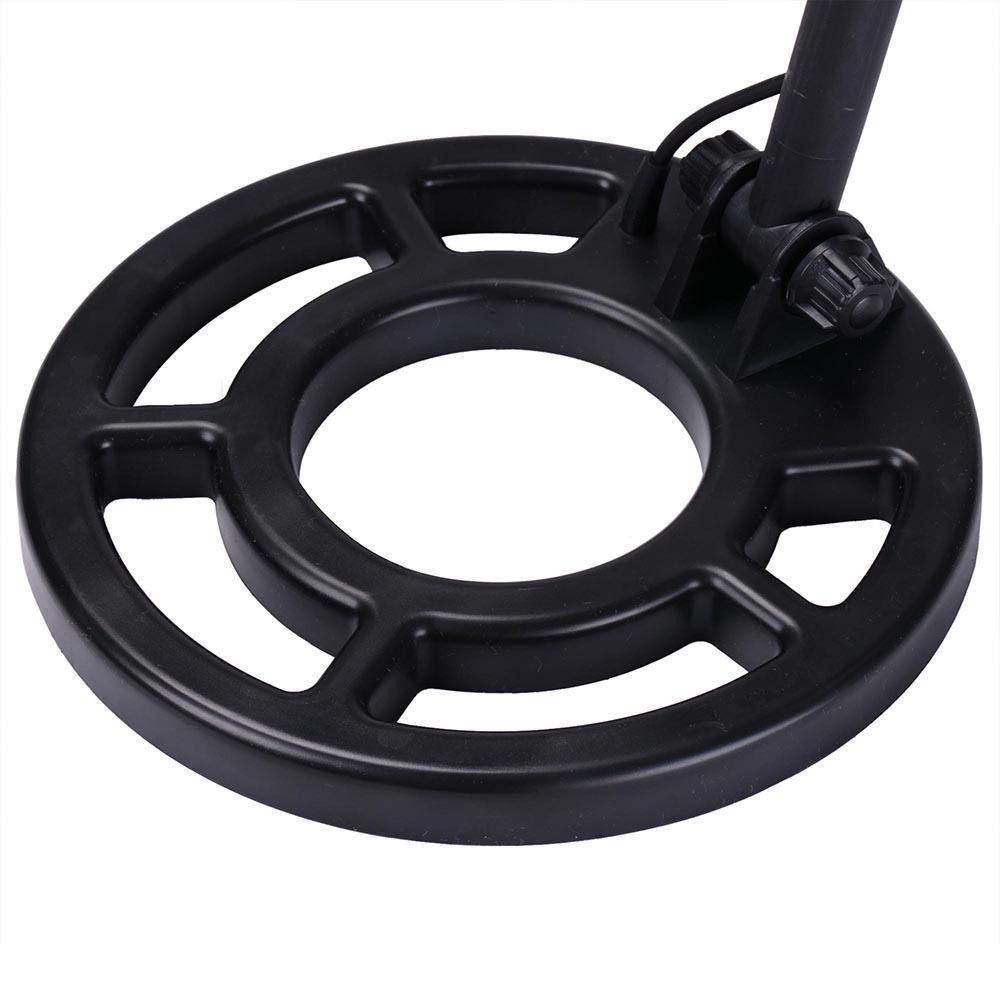

Round Coils
The earliest search coils were typically round or circular in shape. This design was simple yet effective at picking up metallic signals from all directions. Round coils also provided good depth penetration and ground coverage compared to other shapes available at the time.
However, as detector technology improved over the years, round coils became less popular due to their limitations on discrimination abilities. They would often detect both ferrous and non-ferrous metals without any differentiation between them making it harder for users’ identification purposes.
Double-D Coils
In the 1980s, Double-D (DD) coils gained popularity among treasure hunters because they allowed better discrimination capabilities than their predecessors’. These types of coils consist of two overlapping D-shaped windings that produce an elliptical-shaped detection pattern that detects metals only along its length while ignoring targets on either side of it.
DD coils provide more precise target identification by reducing interference from unwanted signals such as minerals present in soil which can cause false alarms or erratic readings during searches.Their unique design also allows for deeper detection depths by concentrating energy into a smaller area beneath the surface – perfect for finding deeply buried relics or coins.
Concentric Coils
Another type of search coil is concentric – these coils have a circular shape with two windings that are positioned one on top of the other. The inner winding is connected to the detector’s transmitter, while the outer winding receives signals from metal objects in its path.
They were popular during the 1990s because they provided excellent discrimination capabilities for finding specific types of metals such as gold or silver. They also had good depth penetration abilities and could detect smaller targets more accurately than round coils. However, concentric coils may struggle in highly mineralized soil conditions where their signal can be easily distorted.
Elliptical Coils
Elliptical-shaped search coils became popular in recent times due to their versatility and improved performance over traditional round-coil designs. These coils offer better ground coverage and sensitivity when compared to circular coil shapes by producing a longer detection pattern that covers more ground at once; this means you can cover larger areas faster without missing any potential targets.
Furthermore, elliptical coils are designed to provide enhanced target separation, which makes it easier for users to distinguish between different types of metals – even those located close together- thanks to their unique shape that focuses energy into a narrower area.
Conclusion
In conclusion, over time metal detecting search coil technology has evolved considerably with manufacturers experimenting with various shapes and sizes suited for different user requirements. Round-shape detectors that were widely used back then have been replaced by DD (Double-D) and Concentric Coil designs due to improved discrimination capabilities while Elliptical coil designs provide superior performance including better target separation, sensitivity, and ground coverage.
Despite these advancements though each design still has some limitations depending on what type of terrain you’re searching through so it’s essential always consider your surroundings before choosing which type of search coil will best suit your needs.
