Unveiling the Secrets of Metal Detecting: The Impact of Coil Size and Shape
Coil Size and Shape: Unveiling the Secrets of Metal Detecting
Metal detecting has fascinated enthusiasts for decades, as it offers a unique opportunity to uncover hidden treasures from the past. But have you ever wondered why some metal detectors come with different coil sizes and shapes? Is there a significant impact on performance? In this article, we will dive into the world of coil size and shape, exploring their significance in metal detecting.
Coil size is an essential factor to consider when selecting a metal detector. The size of the coil determines its coverage area and sensitivity level. Generally, larger coils provide wider coverage but are less sensitive to smaller targets, while smaller coils offer increased sensitivity but cover a narrower area.
1. Small Coils:
Let’s start by examining small-sized coils. These typically range between 4-6 inches in diameter. Smaller coils are highly effective at locating small targets such as coins, jewelry, and relics buried at shallow depths.
Their compact design allows for precise pinpointing and better discrimination capabilities against trash or iron-infested areas. Additionally, due to their reduced size, they perform optimally in highly mineralized soils where larger coils tend to struggle with ground balancing issues.
Small-sized coils excel in tight spaces like dense vegetation or rocky terrains where maneuverability is crucial. They also prove advantageous when searching for gold nuggets due to their exceptional sensitivity towards tiny particles that may go unnoticed by larger coils.
2. Medium Coils:
Moving up in size brings us to medium-sized search coils that usually measure around 8-11 inches in diameter. These versatile all-rounders strike a balance between depth penetration and target separation abilities.
Medium-sized search coils are suitable for general-purpose hunting scenarios where one may encounter various types of targets ranging from coins to artifacts buried at moderate depths. Due to their slightly bigger footprint compared to small-size ones, these coils allow for quicker ground coverage while maintaining decent sensitivity levels across a range of target sizes.
While they might not excel at specialized tasks like small coil pinpointing or large coil depth penetration, medium-sized coils are often preferred by beginners and seasoned detectorists alike due to their versatility and balanced performance.
3. Large Coils:
Now let’s explore the world of large-sized coils, typically measuring between 12-15 inches in diameter. These larger-than-life search coils are designed for maximum depth penetration capabilities, making them ideal for hunting deeply buried targets such as caches or relics.
Due to their broader coverage area, large coils allow you to cover more ground efficiently while minimizing the number of sweeps required. However, it’s important to note that they may pick up more unwanted signals from trash or iron-infested areas due to their increased sensitivity across a wider area.
Large coils excel in open fields or beaches where there is ample space without obstacles hindering movement. They deliver exceptional results when searching for long-lost treasures buried under layers of soil over time. It’s worth mentioning that using a large coil requires patience and experience since distinguishing valuable targets from undesirable ones can be challenging in highly mineralized environments.
4. Elliptical Coils:
So far, we have discussed circular-shaped search coils commonly found on metal detectors. However, elliptical-shaped coils offer an alternative design option with unique attributes.
Elliptical coils come in various dimensions but generally provide similar performance characteristics as their round counterparts of comparable size. What sets them apart is their ability to cover narrow spaces more efficiently due to their elongated shape.
These non-standard shaped search coils prove beneficial when exploring tight spots like corners, crevices, or areas littered with dense vegetation where maneuverability is paramount. Elliptical-shaped coils also offer an advantage when detecting along fence lines or other linear features where precise sweeping becomes crucial.
5. Double-D (DD) Coils:
Another popular type of coil design used by many metal detectors is the Double-D (DD) coil. DD coils consist of two overlapping D-shaped windings, facing in opposite directions. This design enhances their target separation capabilities and makes them particularly effective in highly mineralized soils.
Double-D coils are known for reducing the effects of ground mineralization and enhancing discrimination abilities, enabling detectorists to identify desirable targets amidst challenging environments. They excel at separating closely spaced targets or detecting objects located near iron debris.
6. Concentric Coils:

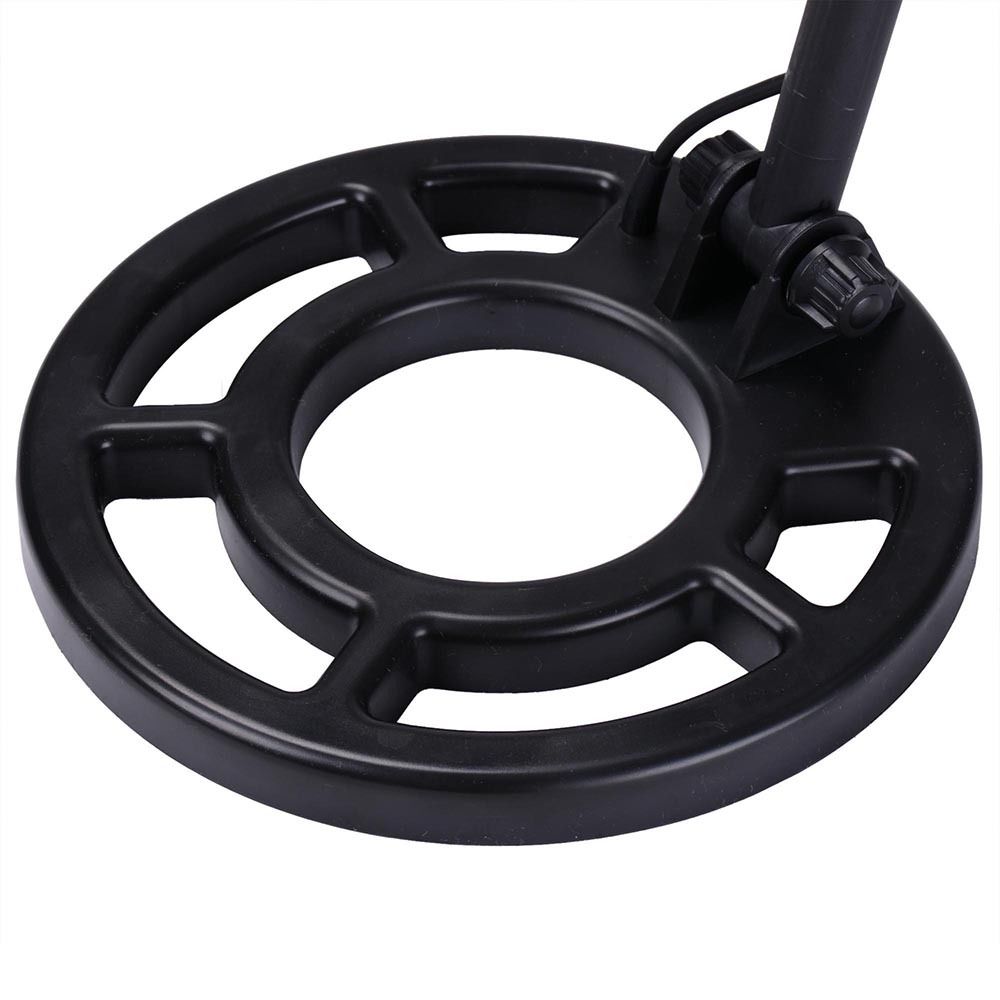

Lastly, we have concentric coils, which feature a circular winding that surrounds a smaller inner circle. These traditional-style search coils are widely used and offer excellent target pinpointing abilities due to their central “bullseye” effect.
Concentric coils work well in areas with moderate mineralization levels and can operate effectively when dealing with smaller-sized targets positioned on or just below the surface. They provide good depth penetration while maintaining accurate target identification even among cluttered surroundings.
In conclusion, selecting the appropriate coil size and shape is crucial for achieving optimal performance during metal detecting expeditions. Small-size coils excel at locating small targets in tight spaces, medium-size ones strike a balance between depth penetration and maneuverability, while large-sized coils offer maximum depth detection capabilities for deeply buried treasures. Elliptical-shaped coils prove advantageous in narrow or linear search areas, whereas Double-D and concentric designs enhance discrimination abilities under challenging conditions.
Remember that different coil sizes and shapes serve distinct purposes; hence it’s always beneficial to have multiple options based on your desired hunting scenarios. With this knowledge in hand, you will be better equipped to choose the right coil for your next metal detecting adventure!
