Unleashing the Power of Different Metal Detecting Coils
Different Types of Metal Detecting Coils
Metal detecting coils are an essential component of a metal detector. They play a significant role in determining the detection depth, sensitivity, and overall performance of the device. There are various types of metal detecting coils available on the market today, each designed for specific purposes and terrains.
1. Standard Search Coils:
Standard search coils, also known as general-purpose or stock coils, come with most metal detectors as they offer versatility for different environments. These coils have a round shape and are typically 8 to 11 inches in diameter. The standard size provides a good balance between coverage area and sensitivity.
The primary advantage of standard search coils is their ability to detect small targets while maintaining decent depth penetration. They work well in most terrains such as parks, fields, forests, and even mild mineralized soils. These coils are ideal for beginners or those who want an all-around coil that performs well in various conditions.
2. Small Search Coils:
Small search coils have diameters ranging from 4 to 7 inches and are commonly used when hunting for tiny objects or searching in heavily littered areas where larger coils cannot easily maneuver. Due to their smaller size, these coils provide better target separation which helps discriminate against nearby trash items.
The reduced coverage area may result in slower ground coverage compared to larger search coils but can be highly effective when searching for coins, relics, or jewelry in areas with high target density like old homesteads or picnic spots.
3.Large Search Coils:
Conversely, large search coils have diameters exceeding 12 inches (some can reach up to 20 inches). These massive loops allow for greater ground coverage but sacrifice some sensitivity to smaller targets due to their size.
Large search coils excel at detecting deeply buried objects and covering vast areas quickly such as plowed fields or open spaces without much clutter. Additionally, they perform well on extremely mineralized soils where smaller coils might struggle.
4. Elliptical Search Coils:
While round search coils are the most common, elliptical or oval-shaped search coils are gaining popularity among metal detector enthusiasts. Their design offers advantages over traditional round coils in specific scenarios.
Elliptical search coils can provide better target separation and sensitivity to irregularly shaped targets compared to their round counterparts. They are particularly useful when searching for relics in trashy areas or when navigating through tight spaces like dense shrubs or rocky terrain. Additionally, they offer improved maneuverability in uneven terrains and can be more comfortable to swing for extended periods.
Coil Size and Its Impact on Detection Depth
One of the critical factors influencing detection depth is the size of the metal detecting coil. Generally, larger coils have greater detection depths due to their increased magnetic field coverage. However, there are a few trade-offs associated with using larger coils.
Firstly, larger search coils tend to be less sensitive to small targets compared to smaller ones. The expanded magnetic field may make it difficult for the coil to pick up weak signals from tiny objects buried at shallow depths. This reduced sensitivity can result in missed finds if not compensated by proper detector settings and techniques.
Secondly, large search coils cover more ground with each sweep but sacrifice some target separation capabilities as a result. When hunting close to other targets or in areas with high trash density, it becomes challenging for a large coil to discriminate desired targets from nearby clutter effectively.
Therefore, selecting the appropriate coil size depends on various factors including target size and depth expectations as well as environmental conditions such as soil mineralization levels and presence of debris.
Understanding Coil Shapes: Concentric vs Double D
Apart from size variations, metal detecting loops also come in different shapes – concentric and double D (DD). Each shape has its unique characteristics that impact performance under various circumstances.
1.Concentric Coils:
Concentric coils consist of two circular loops, one inside the other, with their centers aligned. The outer loop acts as the transmitter while the inner loop functions as the receiver. This design creates a cone-shaped detection field.
The main advantage of concentric coils is their ability to provide precise target identification and better discrimination capabilities. They are highly effective at separating closely spaced targets and can effectively discriminate between different types of metals.
Concentric coils also tend to be more sensitive to smaller targets compared to DD coils due to their focused detection fields. Additionally, they perform well in mineralized soils by providing stable and accurate target responses.

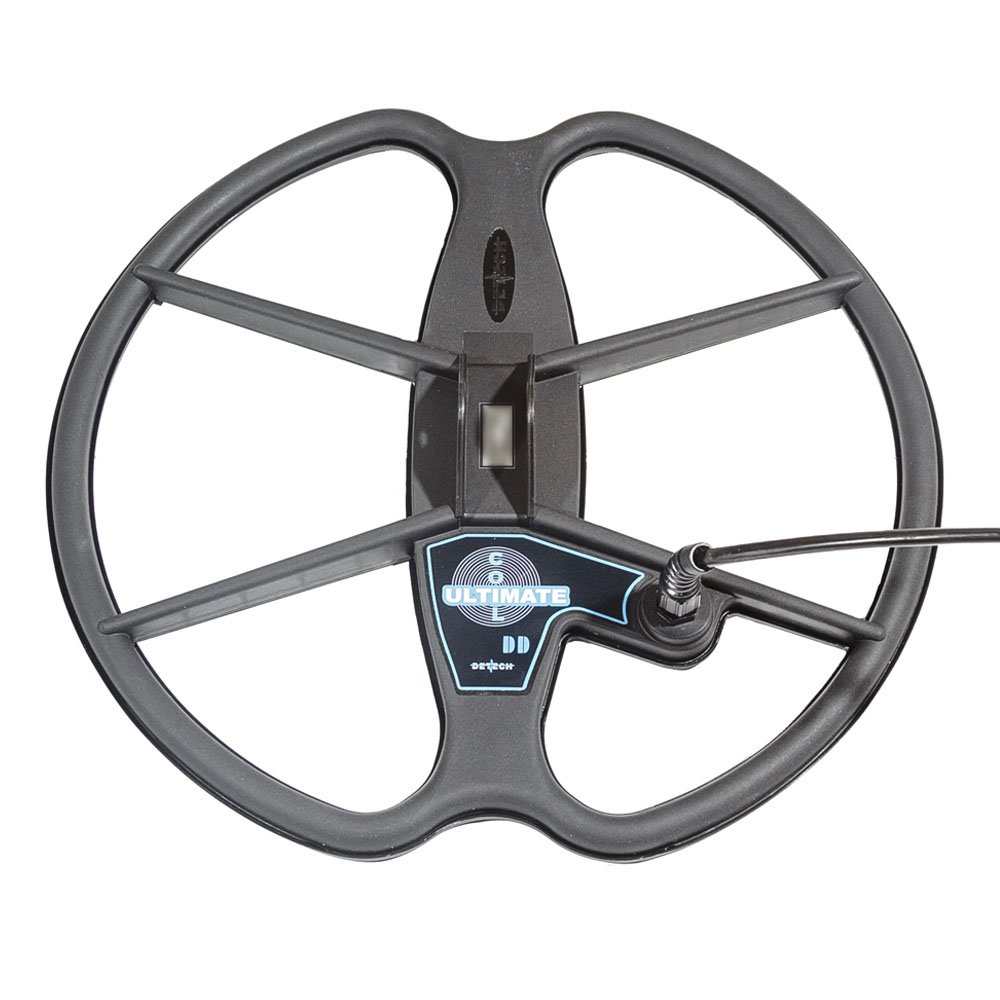

2.Double D (DD) Coils:
Double D coils have two overlapping D-shaped loops that work simultaneously as both transmit and receive elements. The name “double D” refers to the shape formed by these two loops when viewed from above.
DD coils are known for their exceptional ground coverage abilities and improved stability in highly mineralized soil conditions. They generate a broad detection field that enhances depth penetration without sacrificing sensitivity near coil edges.
While DD coils might not offer the same level of target separation as concentric coils, they compensate by having consistent performance across various terrains and being less affected by electrical interference or ground minerals.
Coils for Specific Terrains: Beaches
When it comes to metal detecting on beaches, specific considerations should be taken into account due to unique challenges posed by this environment such as sand erosion, saltwater corrosion, and high mineralization levels caused by black sand deposits.
1.Waterproof Coils:
Beach hunting often involves wading into shallow water or searching in wet sand areas where standard search coils may not withstand moisture exposure over time. Waterproof or submersible coils are designed specifically for beach use, allowing detectorists to fully submerge their equipment if necessary without worrying about damage or loss of performance.
These waterproof coils ensure seamless operation even when exposed to saltwater environments which can cause significant corrosion issues. They are typically sealed tightly to prevent any water from entering the coil housing.
2. Saltwater Beach Coils:
Saltwater beaches present unique challenges due to high levels of mineralization caused by salt and black sand deposits. Specialized saltwater beach coils are designed to handle these conditions and maintain optimal performance in such environments.
Saltwater coils are specifically tuned to reduce the effects of ground mineralization, allowing for better target detection and discrimination in highly challenging areas. Their design helps filter out false signals caused by minerals while providing enhanced sensitivity to valuable targets even when surrounded by highly conductive materials like wet sand or seawater.
These coils often feature advanced ground balance capabilities that allow detectorists to adjust their detectors for optimal performance on salty beaches without compromising depth penetration or target identification accuracy.
In conclusion, metal detecting coils come in various types, sizes, shapes, and designs tailored for specific purposes and terrains. Understanding the differences between these coils is crucial for maximizing your chances of success during metal detecting adventures. Whether you’re searching fields, forests, beaches, or other specialized locations, choosing the right coil can significantly enhance your detection depth, sensitivity to different target sizes, target separation abilities, and overall performance as a treasure hunter.
