“DD vs. Concentric Coils: Choosing the Right Metal Detecting Coil for Success”
When it comes to metal detecting, the type of coil used plays a crucial role in determining the performance and success of your search. Two popular coil designs that you may come across are Double-D (DD) and concentric coils. While both have their strengths, they also differ in terms of their functionality and applications. In this article, we will explore the differences between DD and concentric coil designs, helping you make an informed decision about which one is best suited for your metal detecting needs.

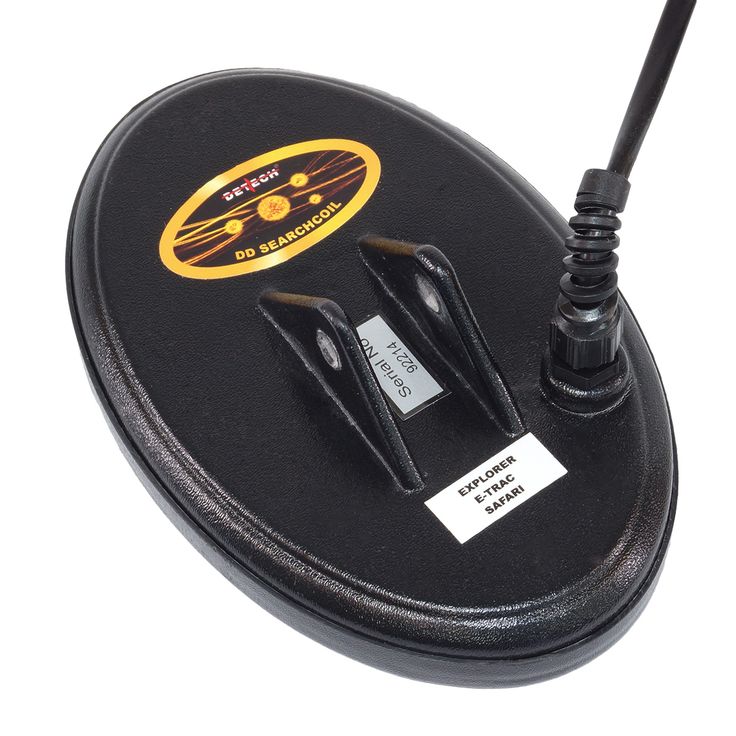

1. Understanding Double-D (DD) Coils:
Double-D coils derive their name from their shape, which resembles two Ds placed back-to-back. This design features two overlapping wire loops that work together to transmit and receive signals effectively. The receiving loop is located on the inside with a smaller diameter than the transmitting loop positioned on the outside.
One significant advantage of DD coils is their ability to cancel out mineralization effects more effectively than concentric coils. Mineralization refers to variations in ground composition that can interfere with signal detection while metal detecting. Due to its unique design, DD coils minimize these interferences by using phase shifting techniques.
2. Exploring Concentric Coils:
Concentric coils consist of two circular wire loops positioned one above the other but centered around a common axis point like nesting cups or rings. These loops operate simultaneously but emit different magnetic fields—one transmits signals while the other receives them.
The main benefit of concentric coils lies in their superior target separation capabilities compared to DD coils. Target separation refers to a detector’s ability to distinguish multiple targets close together without confusing or blending signals into one another since each wire loop operates independently.
3. Depth Penetration:
In terms of depth penetration capability, DD coils are generally known for providing better results compared to concentric ones when searching for larger targets at greater depths due to their wider detection field coverage area.
However, when it comes to small or shallow targets that are easily masked by mineralization effects, concentric coils often outperform DD coils. Their superior target separation allows them to pick up smaller targets near the surface more effectively.
4. Ground Coverage:
DD coils offer wider ground coverage compared to concentric coils due to their larger size and shape. This is advantageous when searching large areas or detecting in open fields where you want to cover as much ground as possible efficiently.
On the other hand, concentric coils have a narrower detection pattern, making them ideal for navigating tight spaces or searching in cluttered environments such as dense vegetation or rocky terrains.
5. Target Identification:
Both coil designs have their strengths and weaknesses concerning target identification capabilities. DD coils excel at identifying non-ferrous metals like gold, silver, and copper due to their better sensitivity levels and improved discrimination capabilities.
Concentric coils are known for providing more accurate target identification on ferrous metals like iron or steel. Their ability to separate signals from different types of metals can help you determine whether it’s worth digging up a potential find without wasting time on unwanted items.
6. Coil Interchangeability:
Some metal detectors allow users to interchange between DD and concentric coil options based on their specific search requirements. This versatility gives detectorists the freedom to switch between coil designs depending on factors such as terrain conditions, target sizes, or personal preferences.
7. Price Considerations:
When comparing prices between DD and concentric coils, it’s important to note that various factors can influence the cost such as brand reputation, technology advancements (e.g., waterproofing), materials used in construction (e.g., lightweight carbon fiber vs traditional ABS plastic), and availability of aftermarket options.
In general, however, concentric coils tend to be more affordable than DD ones due to simpler design structures with fewer components involved.
8. Conclusion:
Ultimately, choosing between a Double-D (DD) or a concentric coil design depends on your specific metal detecting needs and preferences. DD coils are great for mineralized ground conditions, larger target detection at greater depths, wider ground coverage, and better identification of non-ferrous metals. On the other hand, concentric coils excel in target separation capabilities, accurate ferrous metal identification, maneuverability in tight spaces or cluttered environments, and affordability.
Consider the type of hunting you plan to do—whether it’s prospecting for gold nuggets or searching for coins in a park—and evaluate the terrain conditions you will encounter. By understanding these factors and comparing them against the differences outlined above, you can make an informed decision about which coil design is best suited for your metal detecting adventures.
