Coil Type: The Ultimate Guide to Maximizing Metal Detecting Success

Coil Type: A Comprehensive Guide to Choosing the Right Coil for Metal Detecting

Introduction:

When it comes to metal detecting, one of the most critical factors that can greatly impact your success is the type of coil you use. The coil, also known as the search head or search coil, is responsible for transmitting and receiving signals from the metal detector’s control box. Different types of coils are designed for specific purposes and can significantly affect your ability to detect targets in various environments. In this article, we will explore different coil types and guide you through choosing the right one based on your needs.

1. Concentric Coils:

Concentric coils are a popular choice among many detectorists due to their versatility. They consist of two wire windings: an outer ring and an inner circle that share a common center point. This design allows them to emit a cone-shaped detection field, making them excellent for pinpointing targets accurately. Concentric coils are especially effective in trashy areas where discrimination is crucial since they provide better target separation compared to other coil types.

2. Double-D Coils:

Double-D (DD) coils feature two D-shaped windings placed side by side or slightly overlapping each other in opposite directions. This design creates two overlapping detection fields shaped like a figure-eight or butterfly pattern. DD coils excel at ground mineralization cancellation and offer exceptional depth penetration capabilities, making them ideal for hunting in highly mineralized soils or searching for deeply buried treasures such as relics or coins.

3. Monoloop Coils:

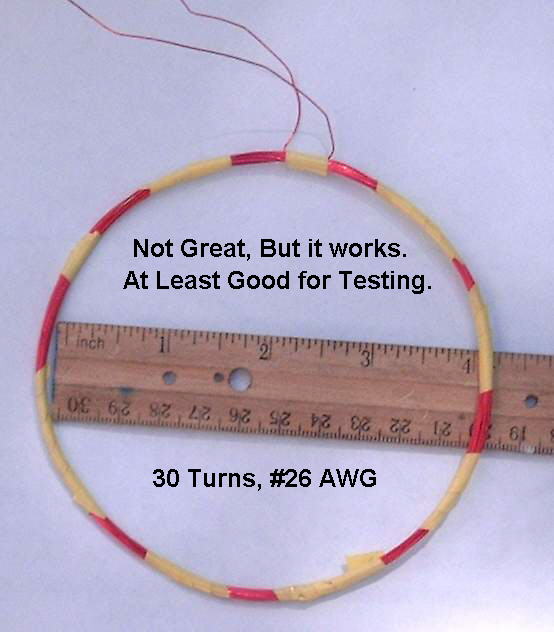

Monoloop coils consist of a single winding wrapped around the circumference of the search head without any overlapping wires like those found in DD coils. These coils produce a magnetic field shaped like a donut or torus, emitting circular detection patterns that penetrate deeper into the ground than concentric ones but with less sensitivity at shallow depths.

Monoloop coils are highly sensitive to small targets and perform exceptionally well in low mineralization areas. They are commonly used for gold prospecting, as they can detect fine gold flakes and nuggets hiding deep within the soil.

4. Elliptical Coils:

Elliptical coils come in various shapes, but their common characteristic is an elongated oval design rather than the traditional circular shape. The advantage of elliptical coils lies in their ability to cover more ground efficiently, especially in tight spaces or uneven terrains. They provide better maneuverability between rocks, bushes, and other obstacles while maintaining good sensitivity to targets.

Additionally, some elliptical coils are specifically designed for specific applications. For example, some models may be tailored for beach hunting with enhanced resistance to saltwater corrosion or wet sand performance.

Conclusion:

Choosing the right coil type for your metal detector is crucial for optimizing your treasure hunting experience. Concentric coils offer versatility and effective target separation, making them suitable for a wide range of environments. DD coils excel at canceling out ground mineralization and provide excellent depth penetration capabilities. Monoloop coils are highly sensitive to small targets and ideal for gold prospecting or low mineralization areas. Lastly, elliptical coils offer better maneuverability and coverage efficiency in tight spaces or uneven terrains.

Remember that each coil type has its strengths and weaknesses depending on factors such as soil conditions, target types, and personal preferences. Experimentation with different coil types can help you find the perfect match that suits your metal detecting needs best!
