Unearthing Hidden Treasures: Exploring the Best Coil Types for Metal Detecting
Coil Type: Exploring the Different Options for Metal Detecting
Metal detecting is a popular hobby that appeals to treasure hunters, history enthusiasts, and outdoor adventurers alike. Whether you’re searching for relics from the past or trying to find hidden valuables, having the right equipment is crucial. One of the most important components of a metal detector is its coil type.
The coil, also known as the search head or antenna, is the part of the metal detector that emits and receives electromagnetic signals. It plays a vital role in determining how well your detector performs in different conditions. There are several types of coils available on the market today, each with its own strengths and weaknesses. In this article, we will explore these different options and help you choose the best one for your needs.

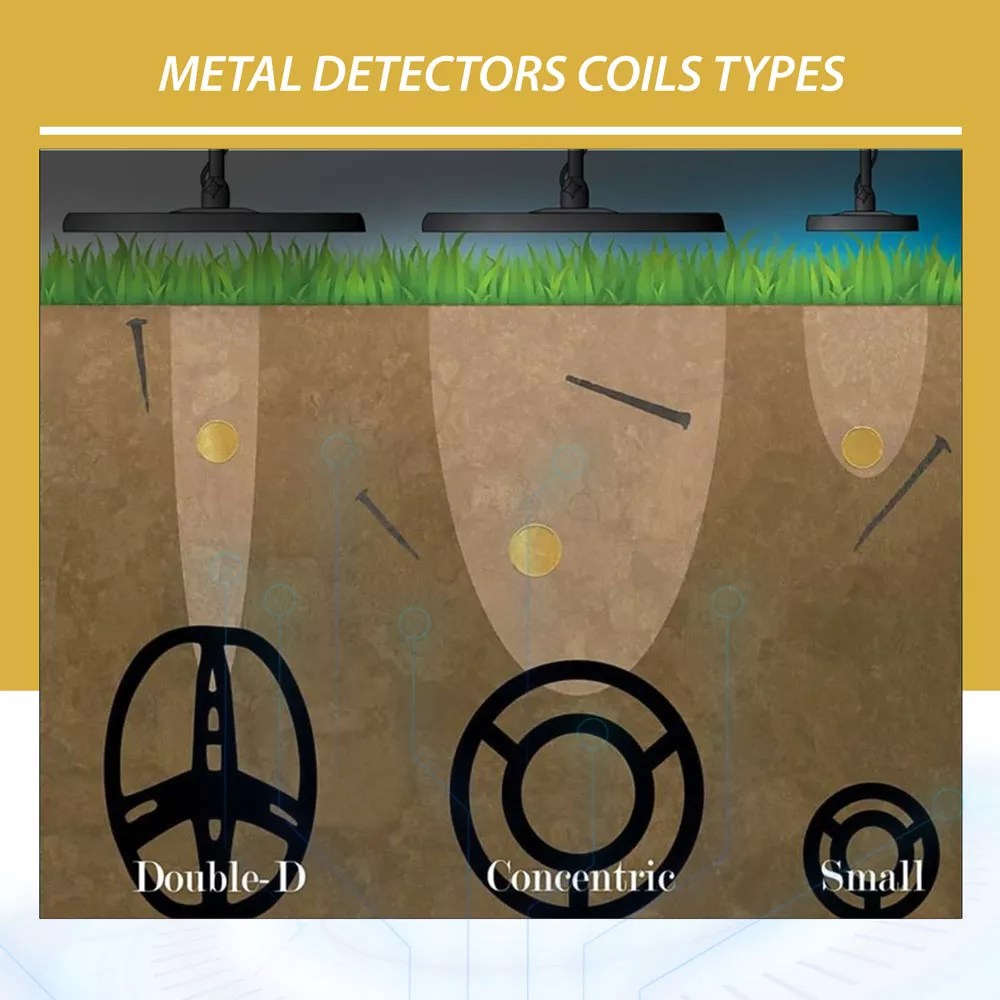

1. Concentric Coils:
Concentric coils are among the most common types used in metal detectors. They consist of two wire windings placed concentrically – one inside another. The inner winding acts as a transmitter while the outer winding serves as a receiver.
One advantage of concentric coils is their excellent target separation capabilities. They can easily distinguish between adjacent objects buried close together, allowing you to identify individual targets more accurately. Concentric coils also tend to be highly sensitive to small targets like coins and jewelry.
However, they have some limitations too. Concentric coils usually have a smaller detection depth compared to other coil types due to their narrower search field coverage area. Additionally, they may struggle with mineralized soil conditions where ground minerals interfere with signal transmission.
2. Double-D (DD) Coils:
Double-D (DD) coils are named after their distinctive shape resembling two “D”s facing each other without touching at their straight sides. These coils utilize two overlapping wire windings that work simultaneously as both transmitters and receivers.
One significant advantage of DD coils is their superior ground penetration capabilities even in heavily mineralized soil conditions—a common challenge for metal detectorists. They can maintain stable performance and achieve greater detection depths compared to concentric coils.
DD coils also offer excellent target separation abilities, making them suitable for detecting in areas with high trash concentrations. They are particularly effective at reducing signals from iron or ferrous materials, allowing you to focus on valuable non-ferrous targets like coins or relics.
However, DD coils may not be as sensitive to small targets as concentric coils due to their broader search field coverage area. Additionally, they tend to have a slightly reduced depth range compared to concentric coils.
3. Mono Coils:
Mono (monoloop) coils consist of a single wire winding that serves both as the transmitter and receiver of electromagnetic signals. These coils are known for their deep-seeking capabilities and enhanced sensitivity to larger buried objects.
One significant advantage of mono coils is their increased detection depth range, especially when searching for large targets like caches or deeply buried artifacts. They excel in mineralized soil conditions where other coil types might struggle due to their focused electromagnetic field.
Mono coils also provide good ground coverage despite having a narrower search pattern compared to concentric or DD coils. This trait makes them suitable for open fields or larger search areas where maximum ground coverage is desired.
However, mono coils have limited target separation abilities compared to concentric or DD coil types. They may produce mixed signals when encountering closely spaced adjacent targets, making it challenging to distinguish individual items accurately.
4. Specialized Coils:
Apart from the main three coil types mentioned above, there are specialized variations designed for specific purposes:
– Butterfly Coils: These unique-shaped double-D (DD) coils feature wider coverage at the bottom while maintaining an elliptical shape on top. The wide-bottom design allows better ground penetration and enhances target separation abilities.
– Sniper Coils: As the name suggests, sniper coils are smaller-sized mono-coil variants optimized for highly targeted metal detecting in tight or hard-to-reach areas. They are lightweight and offer increased maneuverability, making them suitable for dense underbrush or rocky terrains.
– Waterproof Coils: These coils are specifically designed to be submersible and waterproof, allowing metal detecting enthusiasts to explore beaches, rivers, lakes, or even underwater environments.
When choosing a coil type for your metal detector, consider factors such as the intended use (e.g., coin shooting or relic hunting), soil conditions in your area, target size preferences, and any specialized requirements you may have.
In conclusion, selecting the right coil type plays a significant role in maximizing the performance of your metal detector. Whether you opt for concentric coils with excellent target separation capabilities or DD coils with superior ground penetration abilities depends on your specific needs. Meanwhile, mono coils provide enhanced depth-seeking capabilities while sacrificing some target separation abilities. And don’t forget about specialized coil variations that cater to specific environments or search scenarios.
Remember to experiment with different coil types and see which one works best for you. Happy hunting!
