Unveiling the Secrets of Metal Detection: The Power of Concentric Coils
Concentric Coils: Unveiling the Secrets of Metal Detection
Introduction
Metal detecting is a fascinating hobby that has captured the imagination of enthusiasts for decades. From treasure hunters searching for hidden caches to archaeologists unearthing ancient artifacts, metal detectors have played a vital role in uncovering buried treasures and historical remnants.

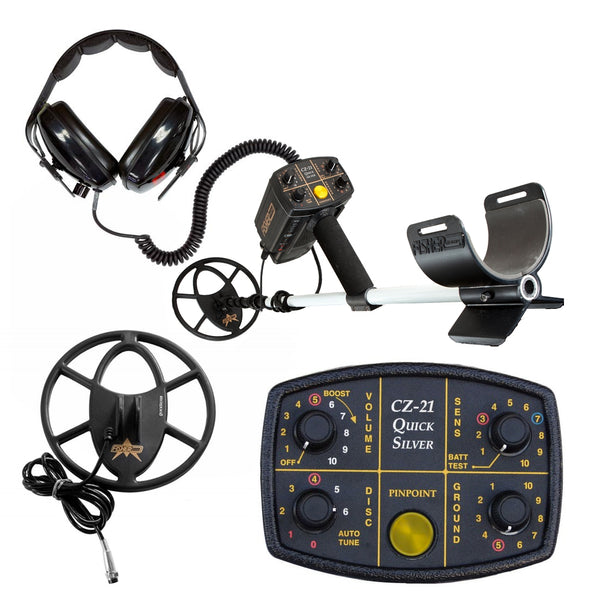

One crucial component of a metal detector is the search coil or search head. This circular disk, typically made of wound wire, interacts with the magnetic fields generated by metallic objects underground. Among the various types of search coils available, concentric coils have gained popularity due to their unique design and exceptional performance.
In this article, we will delve into the intricacies of concentric coils, exploring how they work, their advantages and limitations, and why they are preferred by many metal detectorists.
Understanding Concentric Coils
A concentric coil consists of two separate circles – an outer transmitting coil connected to a transmitter circuit and an inner receiving coil connected to a receiver circuit. The central axis aligns both coils perfectly. When energized by an alternating current (AC), the transmitting coil generates an electromagnetic field that extends above and below its surface.
Working Principle
As you sweep your metal detector over the ground’s surface, the alternating current flowing through the transmitting coil produces changing magnetic fields around it. These magnetic fields penetrate into the earth’s substrate.
When these fields encounter metallic objects beneath the surface, eddy currents are induced within those objects due to Faraday’s law of electromagnetic induction. Consequently, these eddy currents generate secondary magnetic fields opposing that produced by the transmitting coil.
The inner receiving coil within a concentric configuration plays a critical role in detecting such secondary magnetic fields induced by metallic targets. The overlapping design allows it to sense variations in these secondary fields more effectively than other types of coils.
Advantages of Concentric Coils
1. Enhanced Discrimination Abilities: One significant advantage offered by concentric coils is their ability to discriminate between different types of metals. By analyzing the target’s conductivity and ferrous properties, these coils can provide valuable information about the detected object before you even dig it up.
Concentric coils are particularly effective in separating ferrous targets (iron or steel) from non-ferrous ones (gold, silver, copper). This discrimination feature allows detectorists to focus their efforts on more valuable targets while ignoring unwanted junk.
2. Pinpointing Accuracy: Concentric coils excel at precise target pinpointing. Due to their overlapping design, they provide a narrower search field compared to other coil types like Double-D (DD) coils. This characteristic enables users to locate buried objects with greater accuracy.
3. Versatility: The versatility offered by concentric coils is another reason for their popularity among metal detectorists. These coils perform well in various ground conditions, making them suitable for both mineralized soils and highly trashy areas such as parks or beaches where multiple signals may be present simultaneously.
Limitations of Concentric Coils
While concentric coils have numerous advantages, it is essential to acknowledge some limitations associated with this type of search coil:
1. Limited Depth Performance: Concentric coil designs often struggle when detecting deep-buried targets beyond a certain depth range due to their inherent sensitivity pattern and size constraints. In general, larger search heads tend to provide better depth penetration but sacrifice some discrimination capabilities.
2. Ground Coverage Efficiency: Due to the narrow detection field caused by the overlapping design of concentric coils, covering large areas efficiently can be challenging compared to using larger DD or elliptical-shaped search heads.
3. Sensitivity Variation Across Coil Width: A potential drawback of concentric coil designs is that the sensitivity varies across its width due to differences in magnetic fields generated near its outer edge versus closer towards the center axis. This variation may result in missed targets if not adequately compensated for during your sweeps.
Choosing the Right Concentric Coil
When selecting a concentric coil for your metal detector, several factors come into play:
1. Size and Shape: Concentric coils are available in various sizes, typically ranging from 4 to 15 inches in diameter. Larger coils offer better depth penetration but may sacrifice some target separation capabilities.
2. Frequency Options: Some manufacturers offer concentric coils with different operating frequencies. Higher frequency coils (e.g., 18 kHz or more) are generally more sensitive to small targets like jewelry or gold nuggets, while lower frequency coils (e.g., 5 kHz) excel at detecting larger objects and provide better ground penetration.
3. Compatible Metal Detector: Ensure the concentric coil you choose is compatible with your metal detector’s make and model. Most manufacturers produce search coils specifically designed for their detectors, guaranteeing optimal performance when paired correctly.
Conclusion
Concentric coils have proven themselves as reliable tools in the world of metal detecting due to their discrimination abilities, pinpoint accuracy, and versatility across various terrains. Whether you’re an avid treasure hunter or an archaeology enthusiast, understanding the fundamentals of this type of coil can significantly enhance your metal detecting experience.
While they may have limitations regarding depth performance and ground coverage efficiency, choosing the right size, shape, and frequency along with proper compensation techniques will help maximize their potential for success.
With its unique design and exceptional functionality, a well-chosen concentric coil can be an indispensable companion on your quest to uncover hidden treasures from beneath the earth’s surface!
