Unveiling the Secrets of Metal Detector Coil Shapes: Maximizing Performance and Capabilities
Coil shape variations are an essential aspect of metal detecting that can significantly impact the performance and capabilities of your equipment. Different coil shapes have been designed to suit various types of terrains, target sizes, and depths. In this comprehensive guide, we will explore the most common coil shapes used in metal detectors and discuss their advantages and disadvantages.
1. Concentric Coils:
Concentric coils are among the most traditional coil shapes used in metal detecting. These coils consist of two wire windings arranged concentrically around a central axis. The inner winding transmits the electromagnetic field, while the outer winding receives the signal.
Advantages:
– Good discrimination capabilities: Concentric coils offer excellent target separation, making it easier to distinguish between multiple targets closely located.
– Suitable for highly mineralized soils: These coils perform well in areas with high levels of mineralization as they can effectively filter out ground signals.
– Enhanced depth detection: Concentric coils are known for their depth penetration capabilities, making them ideal for detecting targets buried deep underground.
Disadvantages:
– Limited coverage area: Due to their circular design, concentric coils cover less ground compared to other coil shapes like DD (Double-D) coils.
– Less stable on uneven terrains: Concentric coils may struggle on rough or uneven terrains due to their narrow detection pattern.
2. Double-D (DD) Coils:

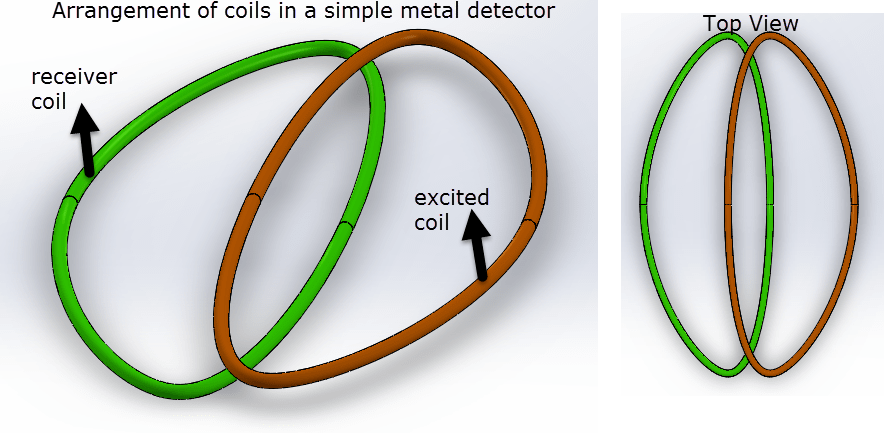

Double-D (DD) coils feature two D-shaped windings placed back-to-back, creating a figure-eight configuration. This design allows both transmit and receive windings to overlap in the center portion of the coil.
Advantages:
– Superior ground coverage: DD coils provide excellent ground coverage due to their wide search pattern, allowing users to scan larger areas more efficiently.
– Stable performance on mineralized soils: DD coils exhibit better stability when faced with highly mineralized grounds compared to concentric coils.
– Improved target depth detection: The overlapping design of DD coils enhances depth detection capabilities, enabling users to detect targets buried at greater depths.
Disadvantages:
– Reduced target separation: While DD coils excel at covering large areas quickly, they may struggle with target discrimination in cluttered environments where multiple targets are closely situated.
– Prone to interference from adjacent objects: The wider search pattern of DD coils increases the likelihood of picking up signals from nearby objects outside the intended search area.
3. Elliptical Coils:
Elliptical-shaped coils offer a combination of features from both concentric and DD coil designs. These versatile coil shapes feature an elongated oval form that provides a balance between ground coverage and sensitivity.
Advantages:
– Balanced performance: Elliptical coils strike a balance between effective ground coverage and precise target identification, making them suitable for various types of hunting environments.
– Enhanced maneuverability: The elongated shape of elliptical coils allows users to navigate through tight spaces more easily than circular-shaped counterparts.
– Versatility across different terrains: Elliptical coils adapt well to different soil conditions and can be used effectively on both flat surfaces and rugged terrains.
Disadvantages:
…
…
